The Complete Guide to Types of PVC Pipe Fittings

A PVC piping system is more than a series of straight pipes. The fittings—those elbows, tees, couplings, and dozens of other connectors—are what give any pipeline its shape, direction, and functionality. When you’re standing in front of a shelf of white fittings or scrolling through a supplier catalog, the sheer variety can be confusing. This guide exists to clear up that confusion.

Whether you’re building an irrigation network, a drainage system, an industrial chemical line, or an electrical conduit run, you need to know which part does what—and why choosing the wrong one can lead to leaks, pressure loss, or even system failure. In this complete guide, we’ll walk through the major types of PVC pipe fittings, explain their functions and common variations, and cover the selection criteria that engineers, plumbers, and procurement professionals rely on every day. We’ll also touch on sizing, schedules, material grades, connection methods, and industry standards. By the end, you’ll have a working understanding of PVC fittings that helps you specify, install, or purchase with confidence.

What Are PVC Pipe Fittings?

PVC pipe fittings are injection-molded or fabricated components used to connect, redirect, branch, reduce, or cap PVC pipes. They are an essential part of any PVC piping system—no project can be completed with pipe alone.

The primary role of a fitting is to create a secure and leak-free transition between pipe segments or between a pipe and a piece of equipment. Fittings handle changes in direction, changes in diameter, multi-port branching, temporary access, and system termination. Because PVC (polyvinyl chloride) is lightweight, corrosion-resistant, and relatively inexpensive, PVC fittings are used across a wide range of industries and applications, including:

• Residential plumbing and drainage
• Municipal water supply and distribution
• Sewer and wastewater systems
• Agricultural irrigation and drip lines
• Pool and spa plumbing
• Chemical processing and industrial piping
• Electrical conduit systems

Below, we’ll break down each common (and some less common) PVC fitting types, their design features, typical uses, and what to watch out for during selection and installation.

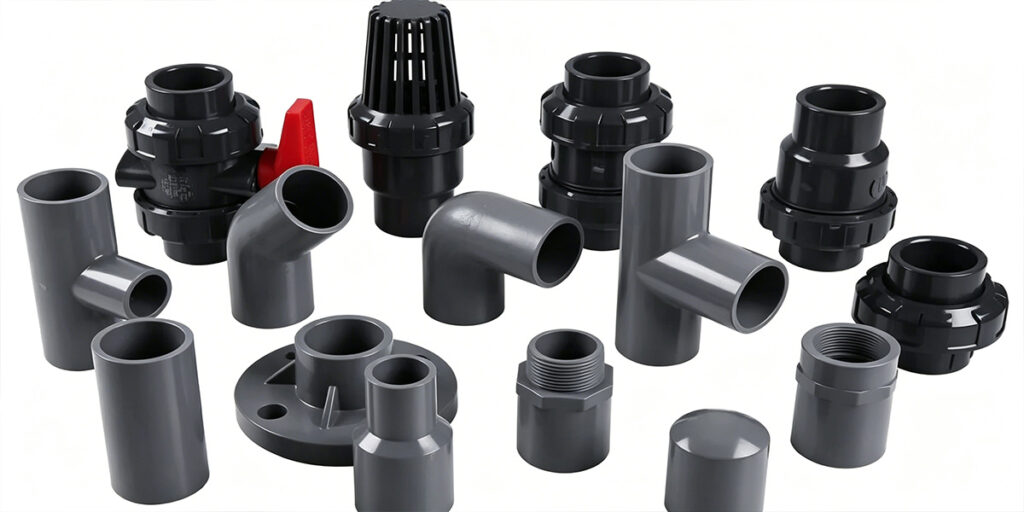

Main Types of PVC Pipe Fittings

This section covers the major fitting types you’re likely to encounter in any PVC piping catalog. Each fitting has a specific function, and many come in several variations.

PVC Couplings

A coupling is a short cylindrical fitting used to join two pipes of the same diameter in a straight line. It is one of the most basic and frequently used PVC fittings.

Common sub-types:

• Standard slip coupling: Both ends have smooth sockets for solvent welding. These join new pipe or repair sections.
• Repair coupling (slip coupling): Has no internal stop, allowing it to slide completely over one pipe end. In tight spaces where you can’t move the pipe, a repair coupling can bridge a gap without having to spread the pipe ends apart.
• Threaded coupling: Has female threads on one or both ends, used when the connection must be disassembled.
• Reducing coupling: Joins two pipes of different diameters, providing a direct diameter transition.

Applications: Pipe line extension, leak repair, connecting straight runs.

PVC Elbows

Elbows change the direction of pipe runs. They are the second most common fitting after couplings.

By angle:

• 90° elbow: Makes a sharp right-angle turn. Most widely used.
• 45° elbow: Creates a more gradual bend, reducing flow resistance.
• 22.5° elbow: Used when only a slight direction change is needed.
• Long sweep (long radius) elbow: Has an extended body radius, especially important in drainage applications to prevent solids buildup and allow smooth flow.

Special types:

• Street elbow: One end is a socket (female) and the other is a spigot (male). This allows direct connection into another fitting without a short piece of pipe.
• Reducing elbow: Changes pipe size while changing direction.
• Side outlet elbow: A 90° elbow with an additional branch opening on the side, combining a direction change with a branch outlet.

Applications: Drainage, water supply, irrigation laterals, electrical conduit bends.

PVC Tees

A PVC tee is a three-way fitting used to create a branch line from a main pipe. Its three ports are typically arranged in a T shape.

Types:

• Equal tee: All three sockets have the same diameter.
• Reducing tee: The branch outlet is smaller than the main run. Used when the branch line requires a lower flow.
• Sanitary tee: Specifically designed for horizontal-to-vertical drain routing. It has an internal curved sweep toward the outlet to prevent clogging.

Applications: Branch connections in supply and drainage lines, vent piping, irrigation zones.

PVC Wyes (Y-Tees)

A wye is shaped like a Y instead of a T. It joins a branch line to a main line at a 45° angle, reducing turbulence and making it ideal for drainage where solid material might settle.

Variations:

• Standard wye: Three ports, one at 45°.
• Double wye: Has two branch inlets at opposing 45° angles.
• Reducing wye: The branch is smaller diameter than the run.

Applications: Drainage and sewer connections, combining two branch flows into one main line.

PVC Crosses

A cross fitting has four ports, all in the same plane, forming a + shape. It allows two branch lines to be connected in opposite directions at the same point on the main pipe.

Types:

• Equal cross: All four openings are the same size.
• Reducing cross: The side outlets are smaller than the run openings.

Applications: Distribution headers where multiple branches are needed at one point; more common in irrigation and low-pressure setups than in high-pressure mains.

PVC Reducers

A reducer changes the pipe diameter along a straight run. It has one larger socket and one smaller socket.

Types:

• Concentric reducer: Centers the two pipe axes along the same line; used in vertical or horizontal piping when no alignment offset is needed.
• Eccentric reducer: The smaller end is offset to one side. This keeps the pipe either top-flat or bottom-flat, preventing air pockets in horizontal pipe runs.

Applications: Connecting main supply lines to smaller branch lines, pump suction and discharge transitions.

PVC Bushings

A bushing is a small fitting that reduces the size of a female socket. Unlike a reducer, a bushing is inserted into an existing fitting (like a tee or coupling) to step down to a smaller pipe size.

Types:

• Standard bushing: A short spigot with a smaller female socket inside.
• Threaded bushing: Changes the thread size inside a threaded socket.

Key point: Bushings save space and reduce the number of fittings required when transitioning close to a joint.

Applications: Adapting pipe sizes right at a connection point, compact assemblies.

PVC Unions

A union looks like a coupling but can be disconnected without cutting the pipe. It consists of three parts: two female end connectors and a central nut that draws them together, sealing with an O-ring or gasket.

Applications: Systems that require periodic disassembly for maintenance—pump connections, filter installations, water treatment equipment, chemical feed lines.

PVC Adapters

Adapters change the connection type. They typically convert a slip (solvent weld) socket to a threaded connection, or vice versa.

Common types:

• Male adapter: Socket on one end, male NPT thread on the other.
• Female adapter: Socket on one end, female NPT thread on the other.
• Hex nipple: Short section with male threads on both ends, used to join two female-threaded components.

Applications: Connecting PVC to metal pipes, attaching valves, faucets, or water heaters, transitioning between plastic piping and threaded equipment.

PVC Caps and Plugs

Both are used to seal the end of a pipe or fitting.

• Cap: Fits over the outside of a pipe end. It has a socket or threads.
• Plug: Fits into the inside of a fitting or a pipe with a female thread. It can be threaded or a simple push-in style.

Applications: Capping unused branch lines, pressure testing, future expansion terminals.

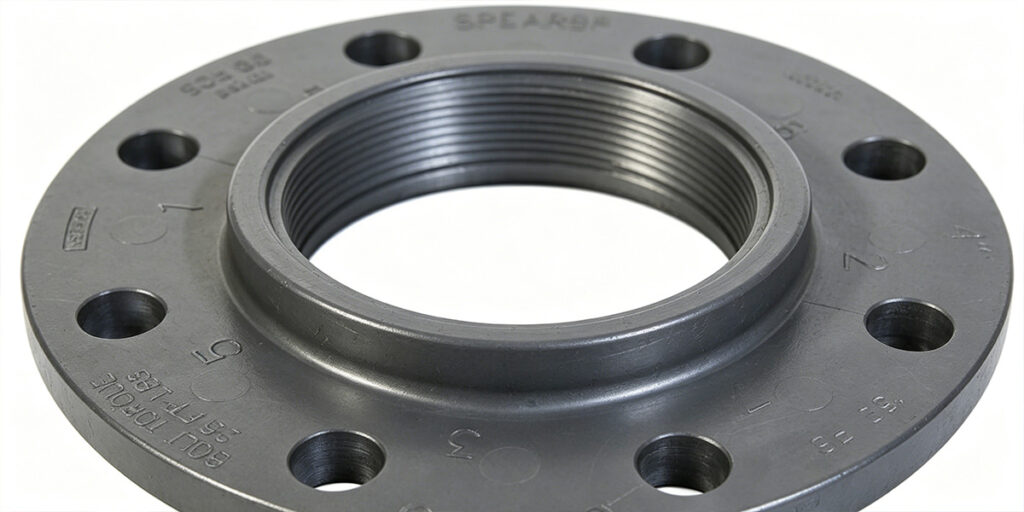

PVC Flanges

A flange is a flat disk with bolt holes that connects two pipe ends or attaches pipe to a tank, pump, or valve. PVC flanges are joined to the pipe with solvent cement or threads, and the flange faces are bolted together with a gasket in between for a tight seal.

Types in PVC:

• Van Stone (two-piece) flange: A rotating ring on the back of a flange adapter that allows bolt hole alignment after the fitting is glued to the pipe. Very practical for assembly.
• Blind flange: A solid flange used to close off a flanged opening.
• Slip-on flange: Sockets directly onto the pipe and is cemented in place.

Applications: Large-diameter industrial lines, tank connections, pump stations, areas requiring frequent disassembly.

PVC Saddle Clamps (Saddles)

A saddle clamp is a curved fitting that attaches over an existing pipe without cutting it completely. After a hole is drilled in the pipe wall, the saddle clamp wraps around and provides an outlet, often with female threads.

Applications: Adding sprinkler risers to mainlines, attaching smaller branch lines in irrigation or drainage, low-cost lateral connections.

PVC Nipples

A nipple is a short piece of pipe with threads on both ends, or one threaded and one plain end. In PVC, it’s often a length of schedule 80 pipe with threaded ends for close-coupling two female-threaded fittings.

Applications: Plant connections, valve assemblies, water treatment manifolds.

PVC Barbed Insert Fittings

These have barbed ends designed for flexible polyethylene (PE) tubing or hose. The barb grips the inside of the tube, often secured with a worm clamp.

Applications: Low-pressure irrigation, drip systems, garden hose connections, rural water lines.

PVC Sweep Elbows and Fittings for DWV

For drain-waste-vent (DWV) systems, fittings are designed to minimize turbulence and solid buildup. Long sweep elbows (typically 1/4 bend with an extended radius) and sanitary tees are standard. These are not rated for pressure; they are for gravity flow.

Applications: Toilet and sink drains, vent stacks, floor drains.

PVC Expansion Joints (Expansion Couplings)

PVC expands and contracts with temperature changes. An expansion joint allows the pipe to move slightly without putting stress on fixed fittings. It usually consists of a sliding inner section with an O-ring seal inside an outer body.

Applications: Long straight runs exposed to sunlight, high-temperature fluctuation locations, building risers.

PVC Ball Valves and Check Valves

Though often classified separately as “valves,” many PVC piping projects integrate ball valves (quarter-turn shutoff) and check valves (allowing flow in one direction only) as part of the fitting network.

Applications: Flow control, backflow prevention, isolation of equipment for maintenance.

Other Specialized PVC Fittings

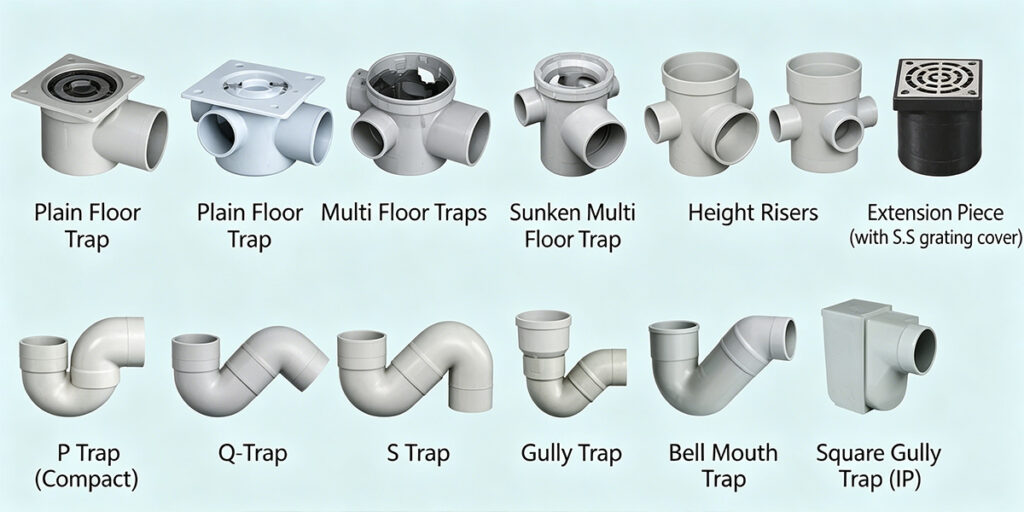

• PVC P-traps: A common DWV fitting that holds a water seal to prevent sewer gas from entering a building.
• PVC Manifolds: Custom or molded fittings with multiple ports for distributing flow to several lines simultaneously.
• PVC End Caps with Knockout: Used in electrical conduit to close off a box, with a removable center.
• PVC Threaded Plugs with Square Head: For cleanouts or inspection ports.

PVC Fittings by Function

Sometimes it’s easier to think about fittings not by their name but by the problem they solve. The following table summarizes PVC fitting types grouped by the job they perform in a piping syste

Function	Fittings Used
Direction change	90° elbow, 45° elbow, 22.5° elbow, long sweep elbow, street elbow
Branch connection	Tee, wye (Y), cross, side outlet elbow, saddle clamp
Pipe size transition	Reducer (concentric, eccentric), bushing, reducing tee, reducing elbow
End sealing	Cap, plug, blind flange
System connection / disconnection	Union, flange, adapter (male/female), nipple
Material conversion	Adapter (slip to thread, PVC to metal)
Thermal expansion	Expansion joint, flexible couplings (in some designs)

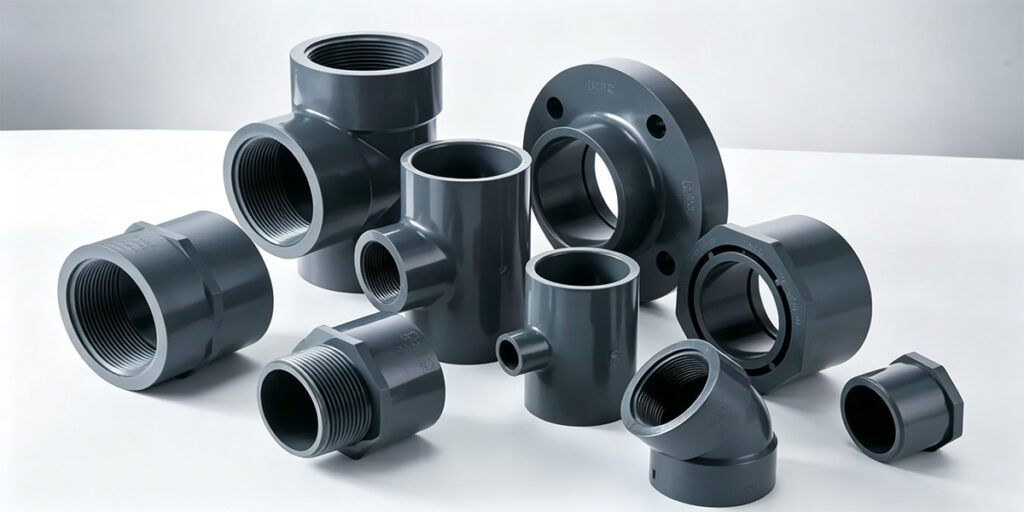

PVC Fittings by Connection Type

Connection method is just as important as the fitting shape. A fitting must match the pipe’s installation method.

Solvent Weld (Slip/Socket) Fittings

The most common PVC connection. The pipe and fitting are chemically fused with solvent cement (after primer application). Once set, this creates a permanent, leak-free, monolithic joint stronger than the pipe itself. All pressure-rated systems use this connection primarily.

Threaded Fittings (NPT/BSP)

Fittings have male or female taper threads. Threaded connections are used where disassembly is needed. They are not as strong as solvent-welded joints for pressure, and PVC threaded joints require PTFE tape or pipe dope to seal. Over-tightening is a common cause of cracking.

Flanged Connections

Used for larger diameters (typically 2″ and above) in industrial and municipal settings. The flange face is bolted to a matching flange with a gasket. This allows easy removal for inspection or cleaning.

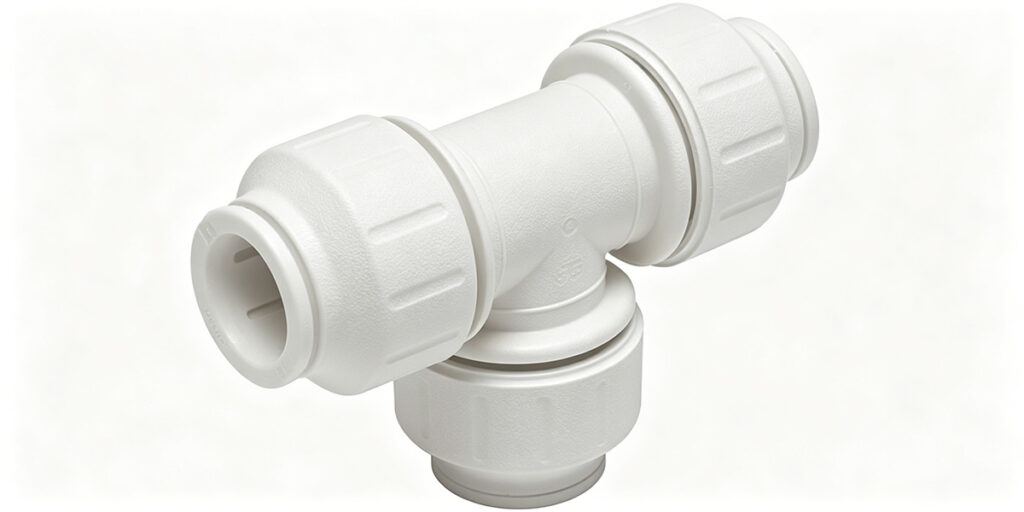

Push-to-Connect (Push-Fit) Fittings

A relatively modern option that uses an internal grab ring and O-ring. The pipe is simply pushed into the fitting. They are fast and don’t require glue, but they are generally more expensive and limited to low-pressure, non-critical applications.

Barbed Insert Fittings

Used with flexible polyethylene pipe. The pipe is pushed over the barbs and secured with a stainless steel clamp. Common in irrigation and low-pressure plumbing.

Socket and Spigot

In PVC terminology, a socket is the female end that receives a pipe or spigot. A spigot is a male end that can be inserted into a socket. Some fittings (like street elbows) have a spigot end, eliminating the need for a short pipe nipple.

PVC Material Variations: PVC, UPVC, and CPVC

While we often say “PVC fittings,” there are different material grades to be aware of.

• PVC (uPVC or Rigid PVC): Unplasticized polyvinyl chloride. This is the standard for most cold-water, drainage, irrigation, and conduit applications. It offers excellent corrosion resistance and is economical. Maximum service temperature is usually around 140°F (60°C).
• CPVC (Chlorinated PVC): Higher chlorine content gives it a higher temperature rating, up to 200°F (93°C). It is used for hot and cold water distribution, and for some chemical processes with elevated temperatures. CPVC is more expensive and generally requires a different solvent cement.
• UPVC: Often used synonymously with standard rigid PVC, but sometimes specifically designates that no plasticizers are added, ensuring stiffness and strength.

Comparison Table: PVC vs. CPVC

Property	PVC (Schedule 40/80)	CPVC	UPVC (Rigid PVC)
Max continuous temp	~140°F (60°C)	~200°F (93°C)	~140°F (60°C)
Typical color	White, dark gray	Light tan, yellow	White, gray, light blue (drinking water in some regions)
Chemical resistance	Good for most acids, alkalis, salts	Broader resistance at higher temps	Good for most acids, alkalis, salts (no plasticizers to leach)
Cost	Lower	Higher	Lower (comparable to PVC Schedule 40/80)
Common standards	ASTM D2466, ASTM D2467	ASTM F439, ASTM F437	EN 1452, ISO 1452, BS 4346, ASTM D1785/D2466 (also covered)
Solvent cement	Standard PVC cement	Special CPVC cement	Standard PVC cement

Schedule 40 vs. Schedule 80 PVC Fittings

Schedules refer to the wall thickness of pipe and fittings. Both Schedule 40 and Schedule 80 designation apply to the same nominal pipe sizes, but Schedule 80 has thicker walls and higher pressure ratings.

Comparison Table

Feature	Schedule 40	Schedule 80
Wall thickness	Thinner	Thicker
Pressure rating	Lower	Higher
Color (common)	White	Dark gray
Typical uses	Residential plumbing, drainage, irrigation	Industrial, high-pressure, chemical lines
Standard for fittings	ASTM D2466	ASTM D2467
Inner diameter	Larger (more flow area)	Smaller (reduced flow due to thicker wall)

Important: Both schedules have the same outer diameter for a given nominal size, meaning they can be interconnected with solvent welding. However, never mix pressure requirements: use the lowest-rated component’s limit as the system limit.

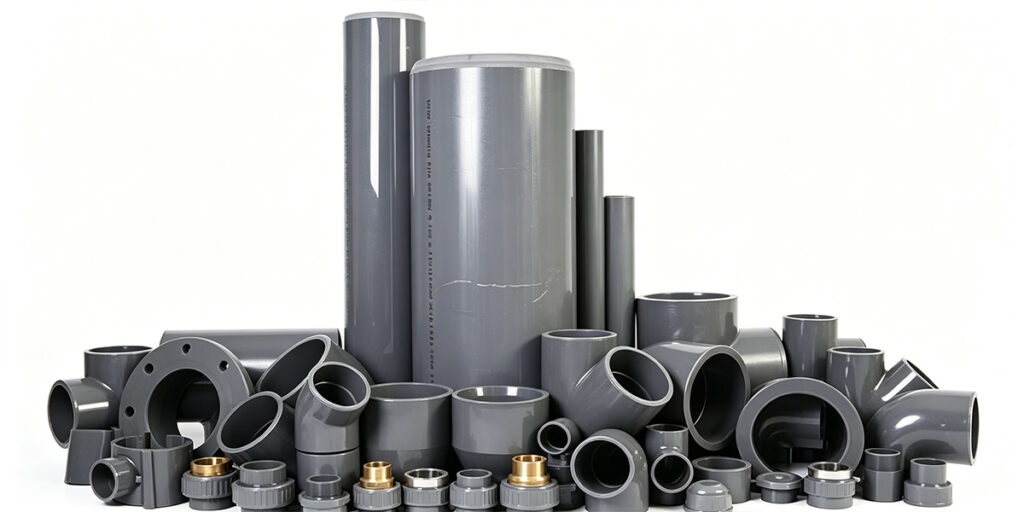

PVC Fitting Sizes and Measurements

PVC fittings are sized using Nominal Pipe Size (NPS) in North America, which is neither the inside nor outside diameter exactly—it is a standardized designation. For example, a 2″ Schedule 40 PVC pipe has an actual OD of 2.375 inches, not 2.000 inches. Fittings are marked with their NPS and schedule.

In international contexts, DN (Diamètre Nominal) measured in millimeters is common. A quick reference table can help:

NPS (inches)	DN (mm)	Approx OD (inches)
1/2″	15	0.84
3/4″	20	1.05
1″	25	1.315
1-1/2″	40	1.9
2″	50	2.375
3″	80	3.5
4″	100	4.5

When ordering, always match pipe and fitting by both nominal size and schedule. The socket depth is standardized per size to ensure proper bonding area.

How to Choose the Right PVC Fittings

Specifying the correct fitting involves more than just shape. Consider these factors:

1. System function: Is it for pressure water supply, gravity drainage, vent, conduit, or chemical transport? This determines whether you need pressure-rated or DWV fittings.
2. Pressure requirement: Select schedule based on system pressure. Remember to account for pressure surge and temperature de-rating. PVC pressure ratings drop significantly at temperatures above 73°F (23°C). For example, a fitting rated 150 psi at 73°F may only handle 100 psi at 110°F. Check the manufacturer’s de-rating chart.
3. Temperature limits: For cold water only, PVC is fine. For hot water or process lines above 140°F, CPVC is necessary.
4. Chemical compatibility: While PVC resists many chemicals, certain solvents, concentrated acids, or hydrocarbons can attack it. Confirm with a chemical resistance chart.
5. Connection type: Permanent (solvent weld) vs. demountable (union, flange, thread). Think about future access and maintenance.
6. Indoor/outdoor/underground: PVC exposed to UV sunlight should be protected (painting or wrapping) to prevent long-term degradation. Underground installations need to be bedded properly to avoid point loading.
7. Industry standards: For drinking water, fittings must meet NSF/ANSI 61. For pressure piping, ASTM D2466/2467 are standard in North America. Check specifications.
8. Sizing: Always verify nominal size and ensure the fitting socket matches the pipe’s outer diameter.

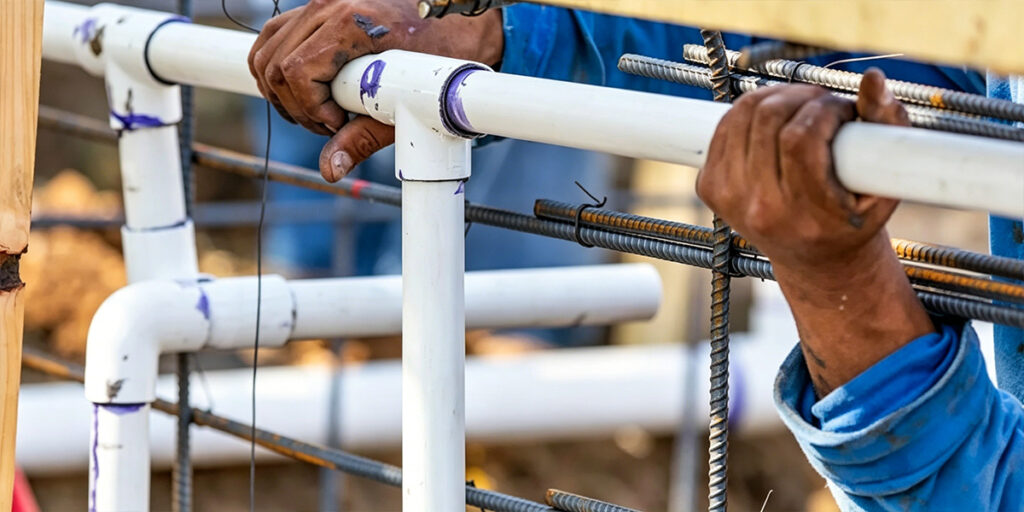

PVC Fitting Installation Best Practices

Installing PVC fittings when using solvent welding requires attention to detail. Here’s a summary:

1. Cut the pipe square using a plastic pipe cutter or fine-toothed saw.
2. Deburr and chamfer the pipe end. A sharp edge can scrape the solvent cement out of the socket during assembly, weakening the bond.
3. Dry-fit the system first to ensure alignment.
4. Apply primer (purple or clear) to the pipe end and fitting socket. This cleans and softens the PVC surface.
5. Apply solvent cement generously to the pipe and lightly inside the fitting socket. Use the correct cement for the material (PVC, CPVC) and pipe size. Heavy-bodied cement is used for larger diameters.
6. Insert the pipe into the fitting with a 1/4 turn while bottoming out, and hold for at least 30 seconds. A bead of cement should appear around the joint.
7. Allow proper cure time before pressure testing. Cure time depends on pipe size, temperature, and humidity. A 2″ joint may need 15 minutes for low pressure, but 24 hours for full rated pressure.
8. For threaded connections, use PTFE thread seal tape or pipe dope rated for PVC. Wrap the tape clockwise and only hand-tighten plus one to two turns with a wrench. Over-tightening can split the female fitting.

Common mistakes to avoid:

• Skipping primer, leading to weak bonds.
• Using the wrong cement (e.g., CPVC cement on PVC).
• Tight-fit assembly without a 1/4 turn, causing voids.
• Not allowing enough cure time before pressurization.
• Mixing Schedule 40 pipe with Schedule 80 fittings without verifying pressure rating.
• Overtightening threaded connections, causing hairline cracks.
• Ignoring thermal expansion: Long straight runs need expansion joints or offsets.

Advantages and Limitations of PVC Fittings

Advantages

• Corrosion resistant: PVC won’t rust or scale like metal.
• Light weight: Easy to transport, handle, and install.
• Chemical inertness: Suitable for a wide range of fluids.
• Smooth internal surface: Low friction loss, resistant to scale buildup.
• Cost-effective: Lower material and installation costs compared to metal.
• Long service life: With proper design, PVC systems can last decades.

Limitations

• Temperature sensitivity: Weakens at high temperatures; becomes brittle in extreme cold if not properly supported.
• UV degradation: Prolonged sunlight exposure can discolor and embrittle PVC. Above-ground outdoor piping needs protection.
• Linear thermal expansion: Requires expansion loops or expansion joints.
• Not for compressed air: PVC should never be used for compressed air or gases above atmospheric pressure due to risk of shattering.
• Lower impact resistance: Can crack under impact, especially in cold weather.
• Chemical stress cracking: Certain chemicals combined with stress can cause premature failure.

Frequently Asked Questions

PVC pipe fittings are far more than simple plastic connectors. They form the backbone of fluid and gas management systems in residential, commercial, agricultural, and industrial projects worldwide. Understanding the names, functions, selection criteria, and installation requirements of each type—from a basic coupling to a four-way cross or a Van Stone flange—empowers you to build reliable, code-compliant, and maintenance-friendly piping systems.

When choosing fittings, consider the entire system: pressure, temperature, chemical exposure, connection method, and long-term service needs. This guide has covered the most common and specialized types you’ll encounter, but always refer to manufacturer data sheets and applicable standards for your specific project. With the right knowledge and quality components, PVC piping can provide decades of trouble-free service.

Choosing the right PVC fittings starts with a reliable partner.

We manufacture a complete range of PVC, CPVC, and UPVC fittings with OEM service available.

Tell us your project details—we’ll help you spec the right parts and deliver competitive pricing.
