Sewer Line Installation: A Professional Guide to Underground Sewer Systems

A properly functioning underground sewer system is something most people never think about—until it fails. Whether for a single-family home, a commercial complex, or a municipal network, the sewer line quietly handles one of the most critical tasks in any building: moving wastewater away from where people live and work. When installation is done right, the system can serve reliably for decades. When corners are cut, the consequences range from recurring blockages and foul odors to ground collapse and environmental contamination.

This guide is written for contractors, engineers, project managers, and property developers who need to make informed decisions about sewer line installation. It walks you through the entire process, from recognizing when a new line is needed to selecting materials, meeting code requirements, calculating slope, executing each installation step correctly, and maintaining the system over its service life. The focus is on underground gravity sewer systems—the type that moves wastewater by the natural force of gravity through buried pipes, whether in a residential backyard or under a city street.

A well-installed underground drainage network does more than transport sewage. It protects groundwater quality, prevents soil erosion, and preserves the structural integrity of buildings and roads above. That makes sewer pipe installation both a technical craft and a public health responsibility. In the sections that follow, we give you the professional perspective that bridge field experience with current engineering standards.

What Is a Sewer Line System?

At its simplest, a sewer line system is a network of underground pipes designed to carry wastewater from its source to a treatment facility or an on-site disposal field. Most of these systems rely on gravity—engineered downhill slopes that keep effluent moving without pumps. This is what professionals refer to as a gravity sewer system.

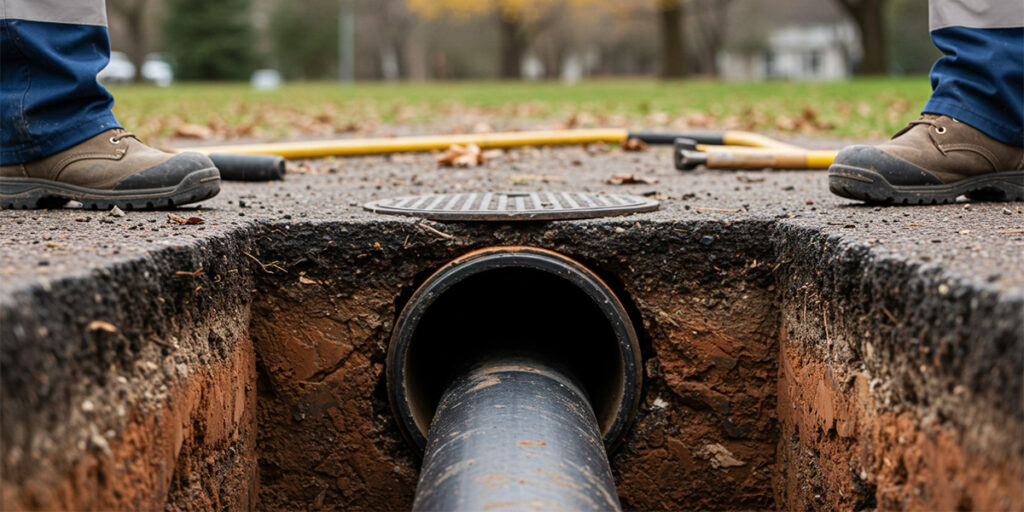

In residential settings, the sewer line typically begins at the point where a home's internal drain pipes converge into a single main line. From there, the wastewater flows through the building sewer, eventually connecting to either a public sewer main or a private septic tank system. The pipe diameter in residential work is usually 4 inches, though local codes may require 6 inches for larger homes or steep grades.

Municipal sewer systems operate at a much larger scale. They collect wastewater from hundreds or thousands of connections through a hierarchical network of lateral lines, branch mains, and trunk sewers, which transport the combined flow to a wastewater treatment plant. Trunk mains can reach diameters of 24 inches, 48 inches, or more, depending on the population served. These systems are engineered with precise hydraulic profiles, multiple access manholes, and provisions for future expansion.

An underground sewer system also includes important ancillary components: manholes and cleanouts for access, ventilation pipes to relieve pressure and prevent siphonage, and sometimes pump stations when terrain makes a pure gravity network impossible. Understanding the role of each component is essential before planning a new installation or replacement, because a sewer network is only as reliable as its weakest joint.

When Is a New Sewer Line Installation Needed?

It is not always obvious when a sewer line has reached the end of its useful life. The pipe is buried, out of sight, and problems often build slowly. Recognizing the warning signs early can save thousands of dollars in emergency repairs and property damage.

New Construction

Any new building project—residential, commercial, or industrial—requires a complete sewer installation from scratch. This is the most straightforward scenario because the system can be designed and installed without working around existing structures. The contractor can optimize the layout, slope, and depth from the beginning.

Aging and Deteriorated Pipelines

Many older systems still use clay tile, Orangeburg (bituminized fiber pipe), or thin-wall cast iron that was installed 50 to 80 years ago. These materials have finite service lives. Clay segments can crack and separate at the joints, Orangeburg becomes oval and collapses under soil load, and cast iron rusts from the inside out. When CCTV inspection shows extensive cracking, joint separation, or loss of pipe cross-section, replacement becomes a matter of when, not if.

Recurring Blockages and Root Intrusion

A drain that clogs once every few years is probably a maintenance issue. A sewer line that backs up several times a year, even after professional cleaning, signals something more serious. Tree roots grow toward moisture and will exploit the smallest crack or joint opening. Once inside, they expand, trap debris, and create a blockage that only returns after clearing. Long-term solution is to replace the affected section with a material that offers tight, root-resistant joints.

Pipe Collapse or Bellied Sections

A pipe section that has sagged or collapsed due to soil settlement, heavy surface loads, or poor original bedding will need to be excavated and replaced. CCTV footage showing standing water, cracked pipe crowns, or visible ground loss above the pipe indicates structural failure. In a municipal context, a collapsed sewer main can overflow into streets and waterways, becoming a public health emergency that demands immediate urban infrastructure upgrade.

Urban Infrastructure Upgrades

Cities and utilities frequently carry out sewer replacement programs as part of broader infrastructure renewal. Old combined sewer systems that mix stormwater with sewage are being separated to prevent treatment plant overflows. Capacity expansions also trigger new sewer line installations, often in larger diameters, to accommodate growing populations and tighter environmental regulations.

In short, you know a new sewer line installation is needed when the existing pipe no longer performs its basic functions: conveying wastewater reliably, without leaks, and without repeated intervention.

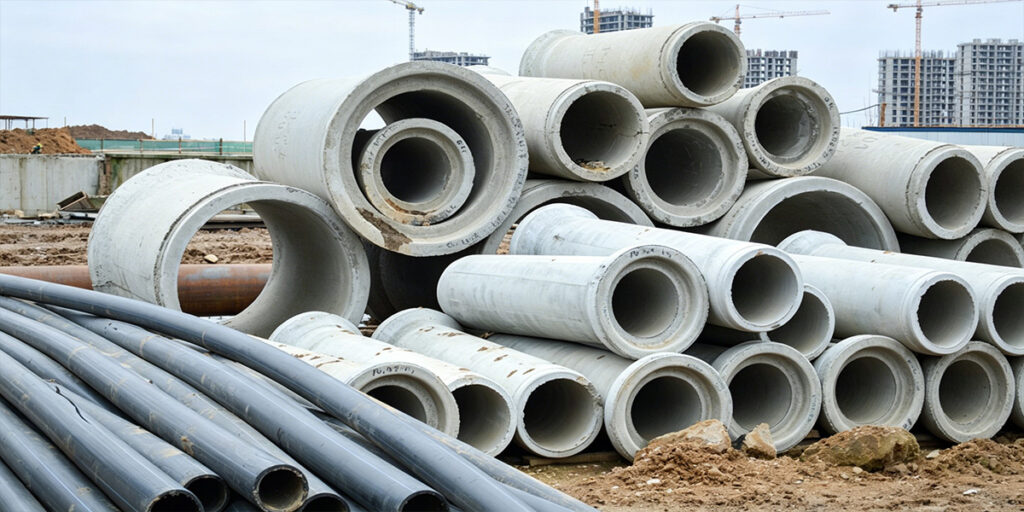

Main Types of Sewer Pipe Materials

The material you bury underground becomes the DNA of your sewer system. Different materials behave differently under load, in corrosive soil, and over time. The following is a balanced, practical overview of the most common options available to contractors and specifiers today.

Material	Typical Service Life	Corrosion Resistance	Joint Integrity	Ease of Installation	Suitable for Trenchless Rehab
PVC	50+ years	Excellent	Good (gasketed or solvent)	Lightweight, fast	Limited (some HDD and sliplining)
HDPE	50–100 years	Excellent	Superior (fusion-welded zero-leak)	Lightweight, needs fusion equipment	Ideal (pipe bursting, HDD, slip lining)
Cast Iron	50–75 years	Poor–Moderate (internal/external rust)	Moderate	Heavy, labor-intensive	No
Vitrified Clay	50–60 years	Excellent	Weak (mortar or compression joints)	Heavy, brittle	No
Concrete	30–50 years (reinforced)	Poor (acid attack)	Moderate (gasketed)	Very heavy	Rarely

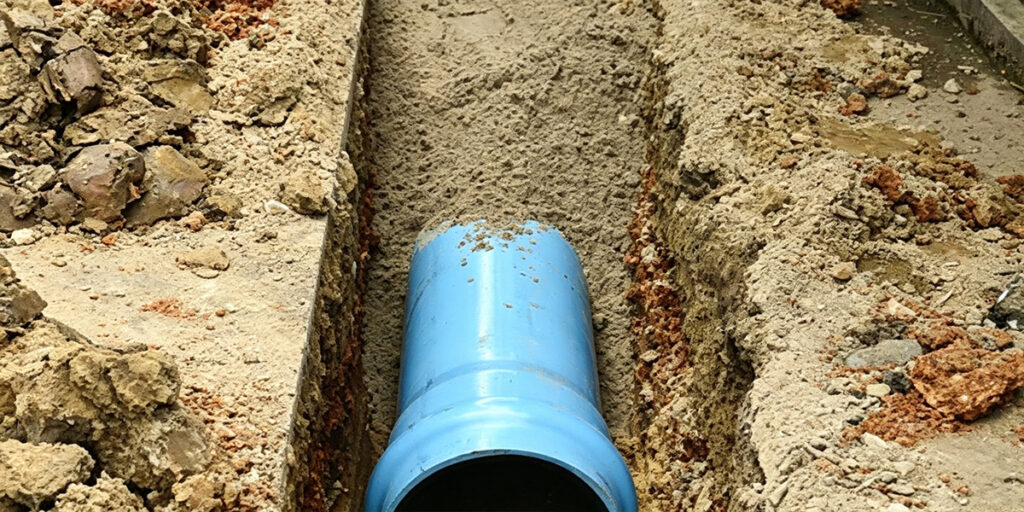

PVC (Polyvinyl Chloride)

PVC is the workhorse of residential sewer lines and light commercial drainage. It’s affordable, widely available, lightweight, and resists most household chemicals. Two wall thicknesses dominate gravity sewer applications: SDR 35 (medium wall) and Schedule 40 (thicker wall, stronger). Joints are made with elastomeric gaskets or solvent cement. PVC works well in stable soil with moderate burial depths, but it can become brittle in extreme cold and may deform under sustained heavy traffic loads if not properly bedded.

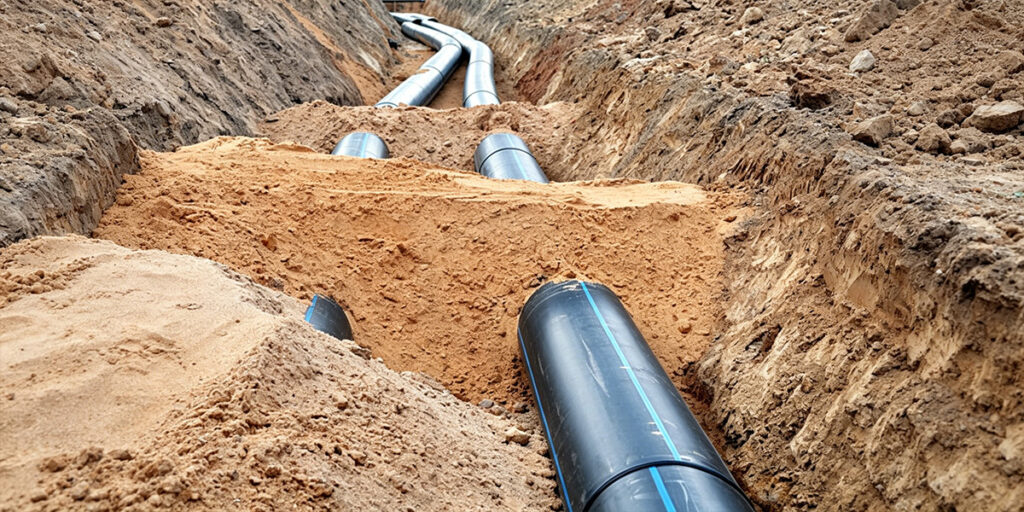

HDPE (High-Density Polyethylene)

HDPE has gained substantial ground in both municipal and industrial underground drainage projects. Its high flexibility allows it to withstand ground movement, making it ideal for seismic zones, river crossings, and areas with expansive soils. A major selling point for engineers is the ability to join HDPE by butt fusion or electrofusion, which creates a monolithic, zero-leakage system with no rubber seals to degrade over decades. It is also highly resistant to abrasion and a broad range of chemicals, which is why you find it in mining, industrial effluent, and sanitary sewer force mains. Because HDPE can be supplied in long coils or sticks and fused above-ground before insertion, it is the material of choice for trenchless technologies like pipe bursting and horizontal directional drilling. Underground installation depth can be significant with proper embedment, and the pipe’s smooth interior maintains excellent flow characteristics throughout its service life.

Corrugated Metal and Plastic Pipe

Corrugated metal pipe (CMP) still appears in stormwater culverts, but it is rarely used for sanitary sewers due to internal corrosion and rough hydraulic performance. Corrugated HDPE or PVC drainage pipe with a smooth interior double-wall design is common in storm sewers and subdrainage, but many jurisdictions restrict its use in gravity sewage lines because of concerns about joint integrity and long-term scour.

Cast Iron

Once the standard for commercial high-rise and institutional buildings, cast iron soil pipe is strong, fire-resistant, and excellent at deadening the sound of flowing water. Its weight and cost, however, limit its use in underground residential and municipal sewers today. Internal corrosion remains a problem unless the pipe is lined or treated.

Vitrified Clay

Clay sewer pipe is among the oldest pipe materials still in service. It is naturally immune to most chemical corrosion. The downside is fragility: clay pipes are short, heavy, and vulnerable to root intrusion through the large number of joints. Modern replacements usually shift to PVC or HDPE for buried applications.

For the specifier, the decision typically comes down to PVC vs. HDPE in most soil-based sanitary sewer projects. PVC offers lower material cost and simpler installation, making it suitable for typical subdivisions and small pipe diameters. HDPE delivers superior long-term security and joint performance, particularly in environmentally sensitive areas or where ground shifts are anticipated. Ductile iron and concrete still appear in forced mains and extremely deep or high-load installations, but for the vast majority of underground gravity sewer systems, the economics and performance of PVC and HDPE have made them the standard.

How to Choose the Right Pipe for Underground Sewer Systems

Choosing the right pipe means looking beyond material cost per foot. The following factors should always be part of the engineering decision:

• Soil Conditions – Acidic or sulfate-rich soils attack concrete and iron; rocky soil demands a tough, flexible pipe. Corrosive groundwater calls for HDPE or PVC.
• Traffic Load – Pipes under highways, rail lines, or runways need high pipe stiffness to handle dynamic loads. Choose an appropriate stiffness class or wall thickness with proper bedding.
• Installation Depth – Deep trenches increase earth load on the pipe. Both PVC and HDPE can be used at significant depth with proper embedment and wall specification; concrete and ductile iron may be required for exceptional loads.
• Corrosion Resistance – For sewers carrying industrial waste or in coastal areas with saline groundwater, the material must resist chemical attack both inside and out. HDPE and PVC excel here.
• Joint Integrity Requirements – In areas of high water table or near sensitive waterways, a tight system is mandatory. Fusion-joined HDPE offers the only truly monolithic, leak-free solution; gasketed PVC joints are reliable if correctly installed but depend on the gasket material.
• Maintenance and Access – Consider the ease of future tapping, cleaning, and CCTV inspection. Smooth interior walls and predictable joint locations help.
• Expected Lifespan – A 50-year pipe may not be sufficient for a major municipal trunk sewer expected to serve a century. HDPE is frequently cited with a 100-year service life under normal conditions, while properly installed PVC can exceed 50–60 years.

No single material wins every time. A professional judgment balances local code requirements, soil report findings, hydraulic needs, and the total installed cost over the design life—not just the purchase price of the pipe.

Planning and Pre-Installation Requirements

Before a shovel hits the ground, careful planning must address site conditions, regulatory requirements, and engineering design. Skipping this phase is the root cause of many installation failures.

Site Survey and Soil Analysis

A geotechnical evaluation of the trench route identifies soil type, groundwater level, and rock presence. Sandy soils drain but may require additional compaction to support the pipe; expansive clays can put stress on the line during wet-dry cycles; and bedrock can make trenching expensive and time-consuming. The soil report directly influences bedding specifications, trench shoring methods, and if the material selected is suitable.

Permits, Codes, and Utility Mapping

Every municipality or regional authority has specific codes governing sewer installation. In the United States, the International Plumbing Code (IPC) or Uniform Plumbing Code (UPC) may apply, often supplemented by local amendments. Outside the U.S., standards such as ISO 4435 (for PVC) and ISO 4427 (for HDPE) as well as various EN standards provide the performance specifications for pipe products and installation practices. Ensure that your design complies with minimum slope requirements, minimum cover depths, and separation distances from potable water lines.

Before any excavation, call for utility locates. Striking an unmarked gas line or fiber optic cable can turn a sewer job into a disaster. A thorough utility mapping plan and on-site marking are non-negotiable.

Determining Elevation and Minimum Slope

Gravity sewer systems work because the starting elevation is higher than the finish point. The field crew must establish benchmarks and shoot grades with a laser or optical level to verify that the natural topography supports a workable slope. The minimum allowable slope depends on the pipe diameter and local code, but a common starting point is 1/4 inch per foot (approximately 2%) for 4-inch residential lines. Larger diameter pipes can often run at flatter slopes due to the higher velocity generated by greater depth of flow. We will discuss slope requirements in more detail shortly.

Sewer Line Installation Standards and Regulations

Every sewer installation operates within a framework of technical standards and local regulations that ensure buried infrastructure performs reliably over decades.

Key International Standards

ISO Standards

• ISO 4427 – HDPE pipes for water supply and drainage
• ISO 4435 – PVC-U pipes and fittings for underground drainage

EN Standards (European)

• EN 1401 – PVC-U piping systems for underground sewerage
• EN 13476 – Structured-wall plastic pipes (PVC and HDPE)
• EN 1610 – Construction and testing of drains and sewers

ASTM Standards (North America / International)

• ASTM D3034 – SDR 35 and SDR 26 PVC sewer pipe
• ASTM F714 – HDPE pipe for water and sewer
• ASTM D2321 – Underground installation practice for thermoplastic pipe

Local Regulations

International standards provide the technical baseline, but local codes always control the job site. These typically specify minimum cover depth, allowable materials, slope requirements, separation from water lines, mandatory inspections, and contractor licensing.

A pipe carrying recognized certification marks—ISO, EN, or ASTM—has passed controlled production and testing protocols. When sourcing from international suppliers, verifying that products meet the standards required in the destination market should be non-negotiable. Reputable manufacturers provide full traceability, including material certifications and batch test reports.

Sewer Pipe Slope Requirements

Slope is at the heart of every gravity sewer system. Get it wrong, and the best pipe money can buy will fail prematurely.

The Principle of Gravity Flow

Wastewater must move fast enough that solids stay suspended but not so fast that the liquid outruns the solids. Standard minimum slopes for sanitary sewers are designed to create a velocity of 2 feet per second when the pipe is flowing full or half-full, which is generally sufficient to scour the pipe wall and prevent deposition. A typical minimum for 4-inch pipe is 1/4 inch per foot (approx. 2.08%). For 6-inch pipe, the minimum can drop to around 1/8 inch per foot (approx. 1.04%), and for 8-inch and larger, minimum grades of 0.40% to 0.60% are common.

Consequences of Getting the Slope Wrong

A slope that is too flat causes solids to settle in the invert. Over time, the build-up reduces the effective diameter, causing frequent blockages. A slope that is too steep can cause the liquid to flow away from solids, leaving them behind to dry and harden. In extreme cases, steep slopes also cause siphoning in branch lines, which can pull water from fixture traps and introduce sewer gases into the building.

Field Calculation

For a given run, multiply the pipe length in feet by the design slope to obtain the total fall required. For example, installing 80 feet of 4-inch pipe at 1/4 inch per foot yields:

80 feet × 0.25 inches/foot = 20 inches of total fall, or 1 foot 8 inches from start to finish. Always check local code for the precise minimum allowed, and remember that a steeper slope is not automatically better—aim for the velocity range that keeps the pipe self-cleaning without risking solids separation.

The Step-by-Step Sewer Line Installation Process

With the design, permits, and slope calculations in hand, the physical work can begin. Every step below matters. A single weak link—poor bedding, a misaligned joint, rushed backfill—can undo all the engineering that came before it.

1. Trench Excavation and Safety

Trench width must be wide enough to allow workers to assemble and align the pipe safely, but no wider than necessary to reduce earth load and restoration cost. A typical recommendation is to keep the trench width equal to the pipe outside diameter plus 12 to 24 inches on each side, depending on depth. Where soil is unstable or the trench exceeds local safety thresholds, shoring or trench boxes are legally required to prevent cave-ins. Never let anyone enter an unprotected deep trench.

Excavation must follow the design grade exactly. Laser levels are standard practice: they provide a continuous reference line that the bottom of the trench must match. If rock is encountered, it must be over-excavated and replaced with compacted granular bedding so that the pipe bears on a uniform surface. Roots and organic soil should also be removed from the trench bottom.

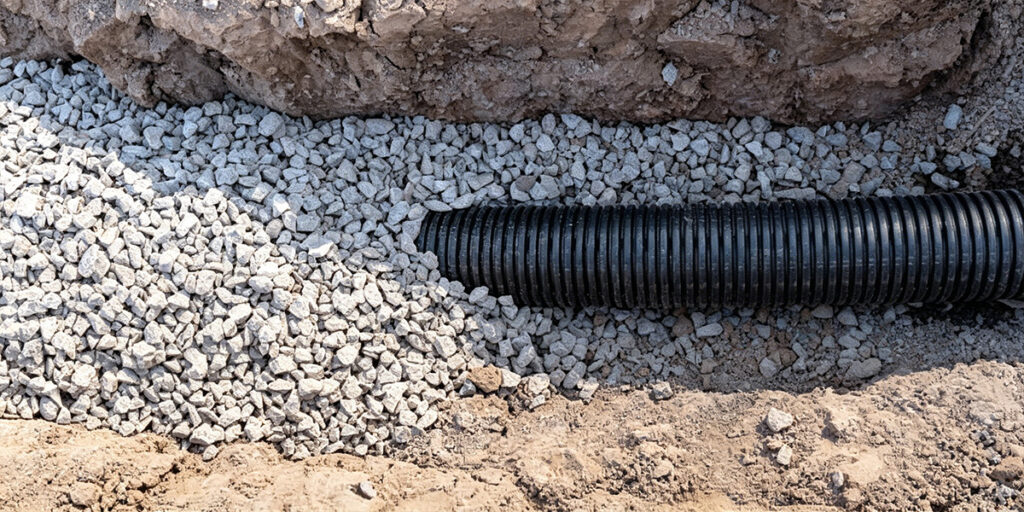

2. Bedding Preparation

Bedding is the layer of carefully selected and compacted material placed directly under and around the pipe. Its job is to cradle the pipe evenly, distributing the load across the pipe’s lower quadrant and preventing point loads that cause stress cracking or deformation.

Clean crushed stone, pea gravel, or coarse sand free of large stones is typically used. The bedding thickness under the pipe is usually 4 to 6 inches, and it should be leveled to grade. In clay soils that might hold water, granular bedding also provides drainage and stabilizes the trench bottom. After the pipe is installed, additional bedding is placed and compacted around the sides to about the pipe’s springline (midpoint), always taking care not to displace the pipe.

3. Pipe Laying and Jointing

Pipes are lowered into the trench by hand or using nylon slings—never by dropping or rolling. Laying proceeds upgrade from the lowest point, with the spigot end pointing downstream (into the bell of the preceding pipe) to maintain a smooth interior flow path.

Gasketed Joints (PVC and concrete)
For bell-and-spigot PVC pipes with rubber gaskets, clean the spigot and the gasket seat, then apply manufacturer-approved lubricant. Align the pipe carefully to avoid scraping the gasket, and push the spigot home using a bar and block or a come-along until the reference mark on the spigot reaches the bell face. This ensures proper compression of the gasket without over-insertion.

Fusion Joints (HDPE)
HDPE is joined by butt fusion or electrofusion, both of which create a seamless, monolithic connection stronger than the pipe itself. In butt fusion, the pipe ends are faced flat, heated against a temperature-controlled plate, then pressed together under controlled pressure and allowed to cool. The resulting joint is permanent and leak-free. Electrofusion uses special couplings with embedded heating coils that melt and fuse the pipe surface when energized. Both methods require trained operators, clean surfaces, and proper alignment. Because the joint eliminates gaskets, it is completely impervious to root intrusion and groundwater infiltration—a major advantage in municipal underground drainage networks with a high water table.

Transitions
Where PVC connects to HDPE or to an existing cast-iron stub, use an approved mechanical coupling or repair clamp designed for the outside diameters of both pipes. Avoid homemade adapters; they are a primary source of future leaks.

As the pipe is laid, workers should periodically check alignment with a line and laser, especially at changes of direction, and install cleanouts or manholes as specified.

4. Testing and Inspection

Before backfill, the installed sewer line must be tested to confirm it is watertight and structurally sound. The two most common acceptance tests are:

• Low-pressure air test: Plugs are placed at both ends of a section, and the internal air pressure is raised to a specified value (often 4 psi for a defined time, depending on pipe diameter and local standard). A leak is indicated by a pressure drop beyond the allowable limit.
• Hydrostatic test (water test): The pipe section is filled with water, and after a stabilization period, the head pressure is maintained for a set duration. Any loss of water beyond a small allowance indicates a leaking joint or cracked pipe.

Many modern specifications now require a post-installation CCTV inspection as part of the acceptance record. A camera is run through the entire line, documenting joint alignment, lateral connections, and the absence of standing water or debris. This video becomes a baseline for future maintenance comparisons and is invaluable for proving compliance.

5. Backfilling and Compaction

The pipe zone—from bedding up to 12 inches above the pipe crown—must be backfilled with select granular material, free of stones larger than about ¾ inch, roots, or frozen material. This initial lift is placed by hand and compacted in thin layers using hand tampers or vibratory plate compactors, avoiding direct contact or impact on the pipe. Sufficient cover should be achieved before allowing heavy equipment over the trench.

Above the pipe zone, native soil can usually be returned, provided it does not contain large boulders or construction debris. Each lift is compacted to the required density, often specified as a percentage of the Standard Proctor maximum density. For trenches under roads or pavements, the compaction must meet higher structural standards to prevent differential settlement and surface cracking.

The final step is surface restoration: replacing pavement, sidewalks, or landscaping to match pre-existing conditions.

Common Problems During Sewer Installation

Even experienced crews encounter challenges. Recognizing these common installation failures can keep a minor issue from becoming a major rebuild.

Problem	Typical Cause	Consequence
Improper slope	Inaccurate grade shooting, settlement of temporary stakes	Solids deposition and frequent blockages
Poor compaction	Backfill placed in too-thick lifts, inadequate compactive effort	Pipe settlement, offset joints, surface depression
Inadequate bedding	Use of native material with rocks, no grading	Point loading, pipe deformation, cracked walls
Incorrect pipe selection	Choosing a material not rated for the soil chemistry or traffic load	Premature corrosion or structural failure
Weak or misaligned joints	Gasket rolled during insertion, insufficient fusion pressure	Leakage, root intrusion, exfiltration
Premature heavy loading	Allowing construction traffic over shallow cover before reaching design strength	Pipe crushing, invisible hairline cracks that grow

Consistent inspection at every stage, combined with a hold-point checklist that covers bedding, joint make-up, and backfill quality, is the best defense against these failures.

Trenchless vs. Traditional Excavation: Which to Choose?

Not every sewer line installation requires an open trench from start to finish. Trenchless methods have matured into reliable alternatives that reduce surface disruption and can be faster in the right conditions.

Traditional open-cut excavation remains the default for new construction on undeveloped land and for repairs where existing landscaping or pavement would be removed anyway. It offers direct access for inspection and gives the contractor full control over bedding and compaction. For large-diameter trunk sewers, open cut is often still required because the pipe size exceeds the limits of trenchless equipment.

Pipe bursting simultaneously breaks the existing pipe and pulls a new HDPE string through the same bore path. It works well for upsizing and for replacing brittle materials like clay or concrete. Because the new pipe is HDPE, the entire line gains fused joints and flexibility.

Horizontal directional drilling (HDD) allows installation of a completely new line along a curved bore path under roads, waterways, or buildings. HDPE is the standard material for HDD due to its ability to withstand the pulling forces and its seamless fused joints.

Slip lining and CIPP are rehabilitation methods more than new installation, but they offer ways to restore failing sewers without full excavation.

The choice between methods depends on the project’s access constraints, required capacity change, and the installation contractor’s equipment. For municipalities trying to minimize traffic disruption and restoration cost, trenchless HDPE installation is often the first option evaluated.

Maintenance Tips for Underground Sewer Systems

Once the new sewer line is in service, a modest amount of preventive maintenance will extend its reliable life by decades.

• Schedule regular CCTV inspections every 3 to 5 years for municipal lines and at the first sign of slow drainage for residential systems. A camera run can spot root intrusion, grease buildup, or a developing sag before it becomes an emergency.
• Practice “3P” discipline in buildings connected to the system: flush only pee, poop, and (toilet) paper. Wipes, feminine hygiene products, oils, and grease are responsible for a significant percentage of blockages even in properly built sewer systems.
• Control root intrusion by selecting pipe materials and joints designed to prevent it. For older sections still in service, periodic root treatment with approved herbicides may be part of a maintenance plan, but the permanent fix is to replace the vulnerable pipe segment.
• Clean strategically, not on a fixed schedule alone. Hydro-jetting and mechanical cleaning are effective but can stress older joints; base the frequency on CCTV findings and flow monitoring data rather than arbitrary time intervals.
• Keep cleanouts accessible and sealed. Buried or overgrown cleanouts defeat the original purpose and turn a simple sewer cleaning into a digging job.

A well-installed underground sewer system is remarkably low-maintenance, but no system is maintenance-free. The small ongoing investment in inspection and cleaning is a fraction of the cost of an emergency repair.
