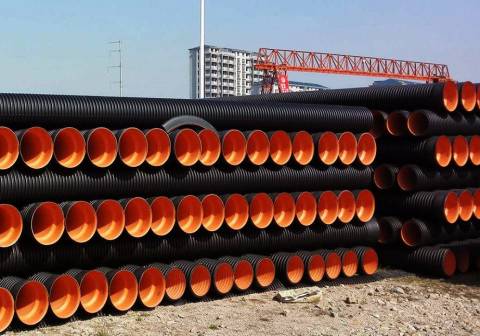

HDPE Double Wall Corrugated Pipe

Material: PE, Polyethylene
Specification: 200-800mm
Length: 6m or as required
Standard: GB/T32439-2015， GB/T19472.1-2004
Certification: ISO CE IAF
Usage: Water Drainage

Product Description

HDPE double-wall corrugated pipe is a flexible pipe. Our company can provide users with various specifications of reinforced plastic pipe and related fittings with DN200mm-DN800mm and standard length of 6m. The above products are strictly in accordance with standard GB/T19472.1-2004. The raw materials used are PE100 grade high-density polyethylene materials. Due to its reasonable structural design and novel production process, the product has a smooth inner surface and an external profile-reinforced structure. The corrugated ribs are hollow to ensure the mechanical strength of the pipe. Because of its superior performance, it has been widely used in engineering projects. Our company has introduced a full set of container processing technology and equipment from Germany, and is willing to serve the users wholeheartedly.

Specification

Nominal Inner Diameter （DN/OD）(mm)	Minimum Average Inner Diameter （dem，min）(mm)	Length of Engagement (Amin)(mm)
200	195	54
250	245	59
300	294	64
400	392	74
500	490	85
600	588	96
800	785	118

Application

1. Municipal engineering residential community.

2. Underground drainage and sewage pipeline.

3. High voltage cable, post and telecommunications cable sheath.

4. Highway pre-buried pipeline.

5. Farmland irrigation, water supply and drainage.

6. Transport of fluids for chemicals and mines. etc.

Advantage

1. Light weight and unique structure.

2. Compression resistance and anti-shock.

3. Low friction, large flow, acid and alkali resistance, corrosion resistance and good chemical stability.

4. Good adaptability to the environment, wide temperature range, especially suitable for alpine regions.

5. Small proportion, convenient for transportation, installation and maintenance.

6. Non-toxic and non-polluting, can be used for the transportation of drinking water.

7. Long service life of more than 50 years for underground laying.

8. Non-polluting and non-toxic, green and environmentally-friendly.

Precautions:

DO ✔：
Keep the pipes and fittings away from sharp objects, heat sources, and toxic and corrosive materials. Before you need to use pipes
and fittings, keep the protective packaging intact. Prevent dust or other materials from entering the pipe. Untie the pipe and
allow it to heat up in the sun before burial.

DON”T ❌:
Throw pipe from delivery vehicles. Place pipeand fittings incontact withlubricating oil,gasoline,solvents,or other aggressive
materials. Heat pipe with an open flame.
